Underwater robot/underwater survey boat battery parameters:

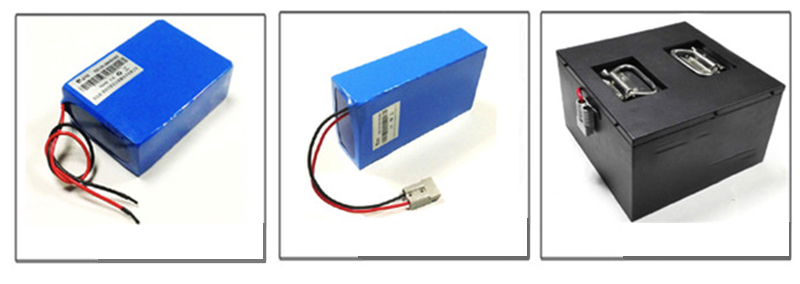

Product Name: LKG-48V-80AH Power Lithium Battery Pack
Battery nominal voltage: 48V
Battery specification/model: KXD-48V-80AH (KXD4273140AL 13S3P)
Nominal capacity (0.2C5A): 80Ah
Continuous operating current: ≤60A
Pulse discharge current: ≤180A
Standard charge current: ≤30A
Charging current: 60A
Battery operating voltage range: 54.6V-39.0V
Charge protection cut-off voltage: 54.6V
Discharge protection cut-off voltage: 39.0V
Charge and discharge ports: charge and discharge with the mouth of the mouth, 4 lines, 16 square lines, red, black, with 120A Anderson plug.
Communication function: CAN bus/RS485 communication port
Battery Size (mm): High 200* Wide 420* Long 650
Internal resistance of finished product (mΩ): ≤120mΩ
Battery weight (kg): about 45kg
Charging temperature (°C): 0°C～45°C
Discharge temperature (°C): -20°C～60°C
Storage temperature (°C): -20°C～45°C
Battery life: more than 1200 cycles
Battery Warranty: 12 months
Maximum output power (W): 2800W
Shell material: sheet metal paint (black)

Supporting charger parameters:
Charger Model: KXD-4815AL
Rated input voltage (V): 220V
Voltage input range (V): AC 200-240V
Output voltage (V): 54.6V±0.5V
Output current (A): 15A±5%
Output power (W): 819W
Efficiency: ≥85%
Shell size (mm): L290mm×W135mm×H70mm
Charge indicator: Power LED1: Red LED2: Green
Charging LED1: Red LED2: Red
Full of LED1: Red LED2: Green
Display voltage (V), current (A)
Input interface: Pass IEC standard
Power cord (m): 1.5 m long
Output line (m): 1.0 m long with 50A Anderson plug connector
Net weight (kg): about 3kg
Shell Material: Aluminum Alloy
Battery charging time (h) about 6-7h

At present, the lithium batteries of underwater robots that support high-current and high-rate discharge mainly include polymer lithium batteries and lithium iron phosphate batteries. LINKAGE batteries are also based on these two types of batteries in the research and development and manufacturing of high-rate discharge lithium batteries. There are many specifications.

1. Basic performance characteristics of high-rate polymer lithium battery:
(1) High-current discharge performance is excellent, explosive power, high discharge platform, high energy density, good cycle life, etc.;
(2) The discharge rate meets the highest instantaneous rate of 150C, continuous discharge at 45C, and fast charging at 5C;
(3) Using laminated technology, the internal resistance is smaller, which is more conducive to rate charging and discharging, and high-efficiency output performance;
(4) Better temperature stability during discharge, controlled within 65 degrees Celsius to prevent overheating and damage;
(5) The battery is ultra-thin, small in size, and extremely light in weight. It can be made into special-shaped batteries of various shapes and capacities, and the thickness can be 0.45mm.

2. The basic performance characteristics of high-rate lithium iron phosphate batteries:
(1) Higher discharge efficiency and better stability against 60℃ high temperature;
(2) Using laminated technology, the internal resistance is smaller, and the performance in terms of discharge and cycle life is higher;
(3) High-current discharge performance is excellent, explosive power, high discharge platform, high energy density, good cycle life, etc.;
(4) The discharge rate meets the highest instantaneous rate 150C, 90C discharge for 2 seconds, 45C continuous discharge, and 5C fast charging capabilities;
(5) The battery is ultra-thin, small in size, and extremely light in weight. It can be made into special-shaped batteries of various shapes and capacities, and the thickness can be 0.45mm.

As a professional manufacturer of high-rate lithium batteries, LINKAGE battery can not only provide customers with customized services such as integrated underwater robot batteries, competitive mecha robot batteries, rescue robot batteries, fire-fighting robot batteries, etc., but also according to customers’ other high-speed The rate battery application needs product projects to customize the program, and produce the battery power supply that meets the product application requirements.
