Main function of the App

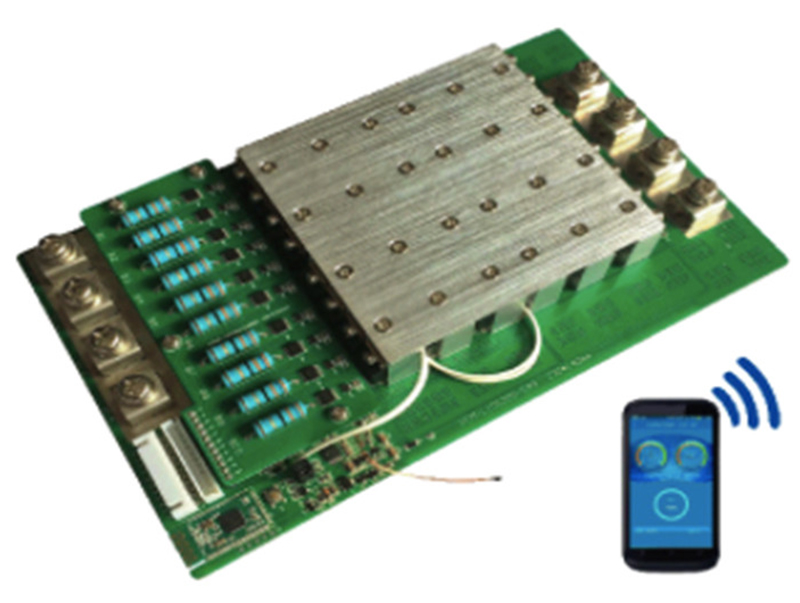

1. Select our Smart battery PCM which transmits the battery data through blue-tooth module then displays it through mobile APP.
2. There are two types of Bluetooth module: one is integrated type in the PCM; the other is external type with connector.
Sweeper machine battery 24V 60AH with Bluetooth communication
| NAME | Spec |
| Nominal Voltage | 25.6V 60Ah |
| Voltage Range | 20-28.8V |
| Weight | 20.8kg |
| Size | 350*245*150mm |
| Charge Current | 30A |
| Continuous Current | 60A |
| Operation Temperature | Charge：0-45℃
Discharge：-10-50℃ |

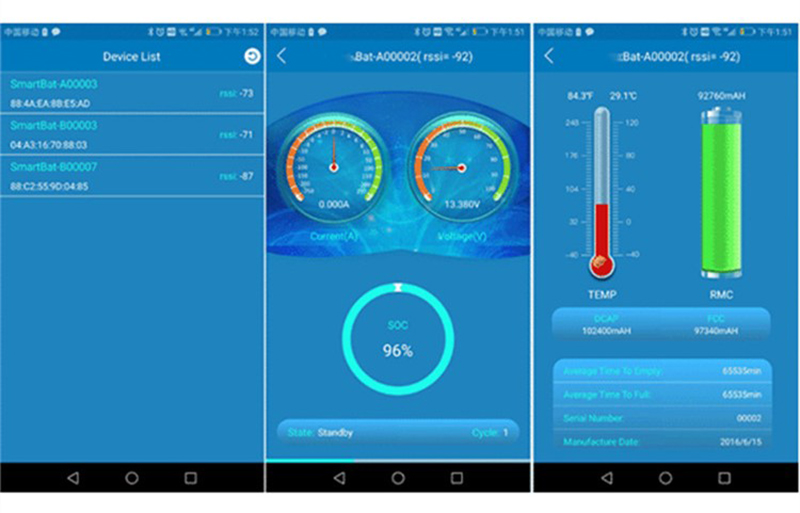

Main function of the App
1. Select our Smart battery PCM which transmits the battery data through bluetooth module then displays it through mobile APP.
2. There are two types of Bluetooth module: one is integrated type in the PCM; the other is external type with connector.
3. The Bluetooth module supports many communication protocols of CANBus, SMBus,HDQ,I2c, RS232, RS485. It’s also compatible with different brands of control IC: TI,O2Micro,Maxim,Freescale and so on.
Lithium battery characteristics:
1. High performance and good cleaning efficiency. Compared with most other types of batteries, the lithium battery of the scrubber has higher performance, which makes the cleaning speed faster and saves time.
2. Long service life. The service life of the lead-acid battery of the general washing machine will be 2-3 years, while the lithium battery of the washing machine will be used for 4-5 years.
3. Without memory effect, it can be charged and used at any time.
4. Waterproof and dustproof protection. Floor scrubbers generally work in water or dusty environments. Waterproof and dustproof must be strict. The lithium battery of the scrubber strictly abides by the point, and there are special waterproof and dustproof designs in the housing, interface, etc.
Maintenance of the lithium battery of the scrubber. First of all, before starting to use the scrubber, you need to make sure that the scrubber’s lithium battery has enough power, check whether there are impurities or dirt inside and on the scrubber, and clean it if there is any. Then check whether the machine connection of each part of the scrubber is loose, whether the metal of the connection is rusty, and if there is, apply lubricating oil. After use, clean up the cleaned sewage. After the inside and outside of the scrubber are wiped clean, the scrubber should be placed in a dry and cool place. Because the environment has a great influence on the lithium battery of the scrubber, affecting its performance and service life. If you do not use the scrubber for a long time, you need to remove the lithium battery of the scrubber and place the lithium battery properly.
