1.Application
The shell of this series charger adopts integrated die-casting structure; the inside of the machine adopts glue filling process; suitable for liquid-rich lead-acid batteries, sealed (colloid) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. , Electric motorcycles, sightseeing cars, patrol cars, forklifts, communications, electricity, ships, etc.
Rated output voltage: 48V
Rated output current: 50A
Rated output power: 2.4KW
Charging cable length: 3M
Application market: Forklift/Tractor/Sightseeing Vehicle/Sweeper/Patrol Vehicle/Ship
Working environment: normal work at -20~65℃; shutdown above 65℃
Input protection: reverse connection/overvoltage/undervoltage/phase loss/overcurrent/overtemperature
Charging efficiency: ≥92%
Cooling method: air cooling
Protection level: IP20

2.Other Technical parameters
Ac input voltage range: 180-260VAC;45-65HZ
AC max input current:  12A@220VAC
Power factor: ≥0.98
Max Efficiency: 93% (Full Load)
Noise: ≤55dB
Protection grade: IP67
Net weight: 4.5kg
Working temperature: -30°C~+55°C
Storage temperature: -40°C~+95°C
Can be with CAN bus; Can be added with 12v auxiliary power supply; Can be connected with three-color indicator light; Charging lock function (The vehicle power system can be locked through the relay during charging process.); Meet the requirements for various occasions.
Can be with National or European standard charging station signals
Protective function
Output overcurrent protection
Input overvoltage protection
Output overvoltage protection
Input undervoltage protection
Output short circuit protection
Over temperature protection
Output no-load protection
Fully charge automatic shutdown
Output reverse connection protection
CAN failure protection

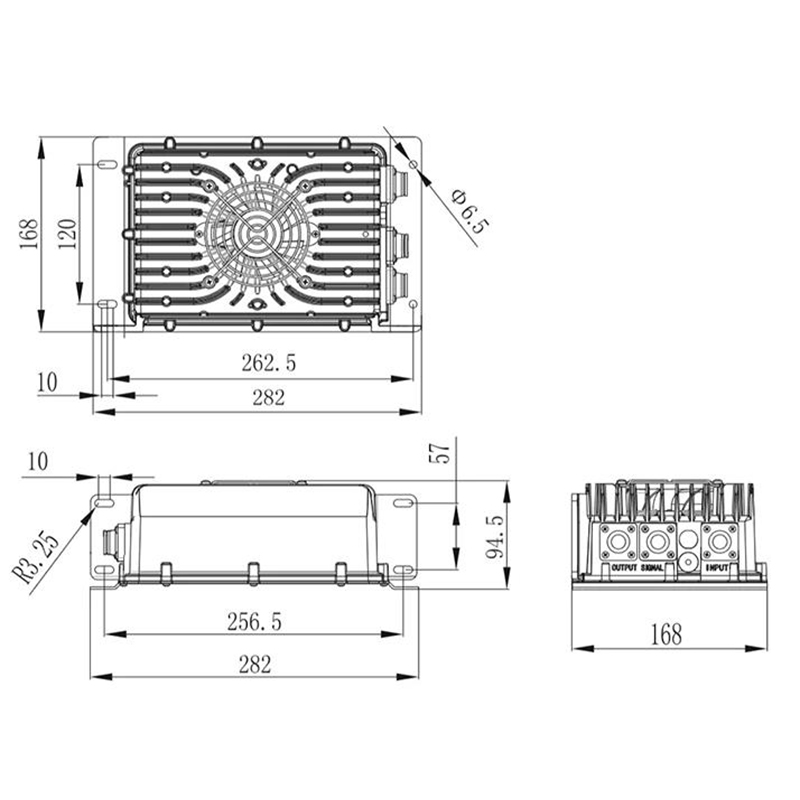

Mechanical Size
