Military Portable UPS 1000W 12V 80AH

Multifunctional Portable Outdoor Emergency Backup Power 1000W Model: LKG-100BC Battery capacity: 12V 90Ah 1000Wh Output power: rated 800W, maximum 1000W Input voltage: AC110V~220V 50/60Hz Output voltage: AC220 V50Hz / 110V60Hz DC output: 12V/10A; 5V/2.4A*2 LED light: 3W* (maximum…

Product Details

Multifunctional Portable Outdoor Emergency Backup Power 1000W
military portable ups 1000w 12v 80ah 5
2.1 Battery PACK Spec:
Item Specification Remark
Cell Type: LiFePO4 27135206 3.2V 80Ah LiFePO4
Configuration:4S1P
Nominal Voltage: 12.8V
Charge Voltage: 14.4V
Nominal Capacity: 80Ah 0.2C TO 14.4V@23℃
Standard charging current: 15A
Max Charge current :20A
Charge Cutoff current ≤800mA
Standard Discharging current :40A
Max Discharging current: 50A
Discharging cutoff Voltage: 11.2V
BMS Inner consumption ≤150uA
Initial resistance ≤20mΩ
Recycle Life ≥80% @2000 cycles(0.5C Dis) 25℃

military portable ups 1000w 12v 80ah 6

Technical Spec:
Item: Specification
Name: 1024Wh Portable Energy-Box
P/N: Energy-Box
AC OUTPUT SPEC: AC220V 50Hz 500W(Pure sine wave)
USB Output: 5V 2.4A
DC 12V Output: 12V/5A
Charger Spec AC INPUT: 100~240V AC
DC OUTPUT: DC 20V 5A
Charging time Approximately 10h(full charge)
Operational Temp Discharge: -20~+50℃
Charge: 0℃~+50℃
Humidity: <90%
Entire equipment weight: 12KG

military portable ups 1000w 12v 80ah 7

Product Function:
1.Panel Function
USB output function
USB1 and USB2 are mainly used to charge mobile phones, digital cameras and other conventional 5V charging
digital products.
DC12output function
DC5521 female is mainly output 12V, can be used for 12V lighting bulbs,
and other 12V power supply equipment
AC 220V 50Hz AC output
The output power is up to 500W, which can be used to power some small appliances.

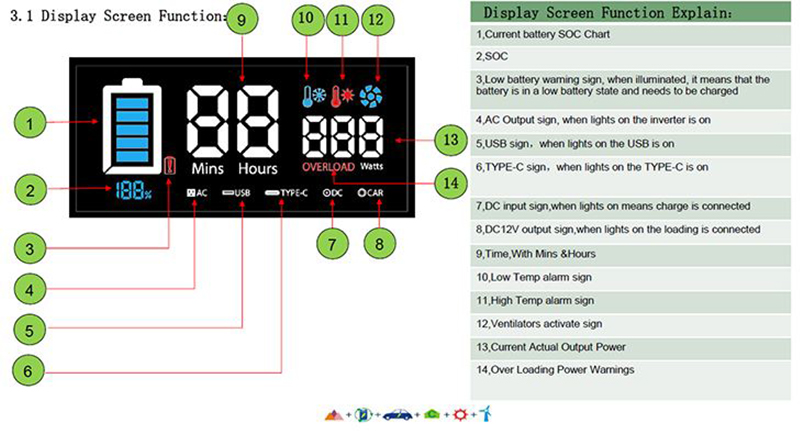

Display function
It can accurately display the current input or output power, calculate and display the discharge or charging time, and display the function identification and status
Charging function
Charging input 20V5A, support solar charging

military portable ups 1000w 12v 80ah 8

New energy storage box series, solar power small system series, solar panel series, solar lighting series, solar mobile power series.

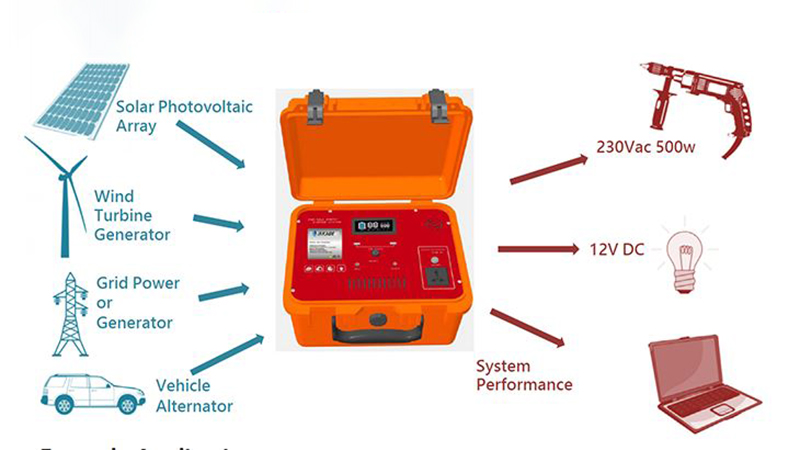

Widely used in medical equipment, drones, mobile phones, tablet computers, laptops, printers, cameras, cameras, lighting, household appliances and other equipment; become business, office, home, outdoor photography, outdoor aerial photography, grazing, fishery, mountaineering, self-driving Essential products for travel, camping, earthquake relief, etc.
